SIEMENS 6SL3224-0BE35-5UA0 G120 PM240 Power Module:
SINAMICS G120 PM240 Power Module unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz power high overload: 55 kW at 200% 3 s,150% 57 s,100% 240 s ambient temperature -10 to +50 °C power low overload: 75 kW at 150% 3 s,110% 57 s,100% 240 s ambient temperature -10 to +40 °C 634 x 350 x 316 (HxWxD), FSF degree of protection IP20 without Control Unit and BOP.
Technical Specifications :
| Parameter | Details |
| Model Number | 6SL3224-0BE35-5UA0 |
| Series | SINAMICS G120 (PM240-2 Power Module) |
| Rated Power | 75 kW (Light Overload), 55 kW (Basic Load) |
| Output Current | 145A (Rated), 110A (Basic Load Current) |
| Control Mode | Current Vector Control (Energy-Optimized Utilization) |
| Filter | Integrated A-Class Filter (Reduces Electromagnetic Interference) |
| Safety Functions | STO (Safe Torque Off) per IEC 61508/SIL2 |
| Mechanical Design | Compact Book-Size Format (FSF Dimensions), IP20 Protection |
| Weight | Approximately 7.85 kg (FSF Variant) |
| Cooling | Passive (Fan-Free Design) with Ventilation Requirements: 100 mm Top/Bottom, 30 mm Sides |
| Mounting | DIN Rail or Direct Cabinet Mounting (Installation Depth Increases by 65 mm with Control Unit) |
| Operating Temperature | -20°C to +50°C (Basic Load), -10°C to +40°C (Heavy Load) |
| Storage Temperature | -25°C to +70°C |
| Humidity | 5% to 95% (Non-Condensing) |
| Altitude | Up to 1000m (Derating Required Above 1000m) |
| Vibration/Shock | Conforms to IEC 60068-2-6/27 (Industrial Environment Resistance) |
| Approvals | CE, UL, cUL, RoHS-Compliant |
| Compliance | EN 61800-3 (EMC), IEC 61508/SIL2 (Safety) |
| Communication | PROFIBUS-DP, Optional Modbus RTU/CAN/USS via DRIVE-CLiQ |
| Diagnostics | LED Status Indicators, Error Logging, and Debugging via TIA Portal |
| Brake Function | Integrated Brake Chopper (Supports Dynamic Braking) |
| I/O Interface | Configurable Digital/Analog I/O (via Optional Modules) |
| Optional Modules | Fieldbus Adapters, Encoder Interfaces, Safety Modules |
| Lifecycle Status | Active (Current Production Model) |
Our Services:
1, All our products are new and original, and of good quality.
2, Our prices are very competitive.
3, We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4, All inquiries will be valued and will reply in 24.
More Products In Stock:
| 6SL3224-0BE35-5UA0 | 6SL3260-2TA00-0AA0 | 6SL3514-1KE13-5AE0 | 6AV3971-1CA01-0CA0 |
| 6ES5375-8LC11 | 6AV3637-1PL00-0AX0 | 6ES5252-5AA11 | 6ES5333-0AC |
| 6ES5458-4UA12 | 3RT1017-1BB42 | 6AV3515-1EK30-1AA0 | 6ES5762-2AA12 |
| 6ES5453-8MC11 | 3RT1015-1WB41 | 6ES5150-3SB61 | 6ES5955-3LC13 |
| 6ES5955-3LF11 | 6ES5453-6AC11 | 6AV2123-2GB03-0AX0 | 6ES5944-7UA21 |
| 6ES5355-3UA11 | 3RV1011-0HA10 | 6ES5185-3UA41 | 6AV3530-1RU31 |
| 6ES5700-1SA11 | 6ES5241-1AD11 | 6ES5951-7ND32 | 6ES5635-0UA11 |
| 6ES5983-2AB11 | 6AV3515-1MA20-1AA0 | 6ES5631-0AA11 | 6ES5400-7AA13 |
| 6ES5450-8MB11 | 6ES5454-4UA12 | 6ES5440-8MA12 | 6ES5188-3UA32 |
| 6ES5921-3WA13 | 6AV3520-1DK00 | 6ES5372-1AA61 | 6FM1496-1BB10 |
| 6ES7431-7KF10-0AB0 | 6ES7414-4HJ04-0AB0 | 6ES7153-2BA02-0XB0 | 6ES7195-7HD10-0XA0 |
| 6ES7134-4GB01-0AB0 | 6AV3607-1JC20-0AX1 | 6ES7431-7KF00-6AA0 | 6ES7307-1KA00-0AA0 |
| 6ES7138-4CA01-0AA0 | 6ES7972-0BA12-0XA0 | 6ES7392-1AJ00-0AA0 | 6ES7416-2XK01-0AB0 |
| 6ES7350-2AH00-0AE0 | 6ES7417-4XL04-0AB0 | 6ES7972-0AA01-0XA0 | 6ES7315-1AF03-OABO |
| 6ES7952-1AH00-0AA0 | 6ES7400-1TA01-0AA0 | 6ES7153-4BA00-0XB0 | 6ES7131-4BD01-0AA0 |
Product Tags:
|
|

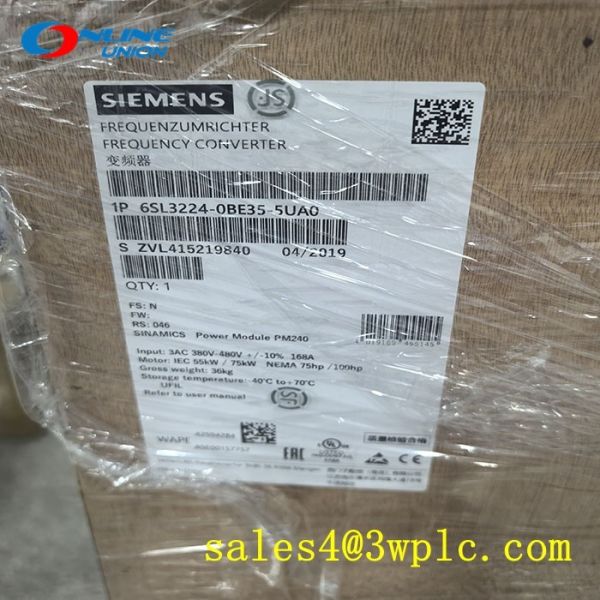

6SL3224-0BE35-5UA0 SIEMENS G120 PM240 Power Module Images
|
