SIEMENS 6AV6647-0AD11-3AX0 SIMATIC HMI KTP600 Basic Color PN:
SIMATIC HMI KTP600 Basic Color PN, Basic Panel, key/touch operation, 6" TFT display, 256 colors, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD.
Technical Specifications:
Model: 6AV6647-0AD11-3AX0
Series: SIMATIC KTP600 Basic Color PN
Display: 5.7-inch TFT LCD with 320 x 240 pixels resolution and 256-color support.
Input Method: Touchscreen interface with 6 programmable function keys.
Communication:
Ethernet (PROFINET) for industrial networking.
Optional RS-485 interface for serial communication.
Processor: ARM-based architecture for efficient operation.
Memory:
32 KB user memory for storing HMI projects and data.
Expandable storage via MMC/SD card slot (supports up to 2 GB).
Power Supply: 24V DC (operating range: 19.2V–28.8V DC), consuming up to 15W.
Protection: IP65 rating on the front panel (dust-tight and water-resistant), IP20 on the rear.
Environmental Ratings:
Operating temperature: 0°C to 50°C.
Storage temperature: -20°C to 60°C.
Humidity tolerance: 10% to 90% RH (non-condensing).
Mounting: Panel-mount design with a cutout dimension of 214 x 158 mm.
Our Services:
1, All our products are new and original, and of good quality.
2, Our prices are very competitive.
3, We have a large quantity in stock, so we could help the customers to get the components which are difficult to get.
4, All inquiries will be valued and will reply in 24.
More Products In Stock:
| 6AV6640-0CA01-0AX0 | 6AV2123-2DB03-0AX0 | 6AV2123-2GA03-0AX0 | 6AV2123-2GB03-0AX0 | 6AV2123-2JB03-0AX0 |
| 6AV2123-2MA03-0AX0 | 6AV2123-2MB03-0AX0 | 6AV2124-0GC01-0AX0 | 6AV2124-0JC01-0AX0 | 6AV2124-0MC01-0AX0 |
| 6AV2124-0QC02-0AX1 | 6AV2124-1DC01-0AX0 | 6AV2124-1GC01-0AX0 | 6AV2124-1MC01-0AX0 | 6AV2124-2DC01-0AX0 |
| 6AV6381-2BE07-5AV0 | 6AV6613-1GA51-3CA0 | 6AV6648-0CC11-3AX0 | 6AV6648-0CE11-3AX0 | 6AV6648-0DC11-3AX0 |
| 6AV6648-0DE11-3AX0 | 6AV6542-0AG10-0AX0 | 6AV6647-0AF11-3AX0 | 6AV3627-1QL00-0AX0 | 6AV8100-0BB00-0AA1 |
Product Tags:
|
|

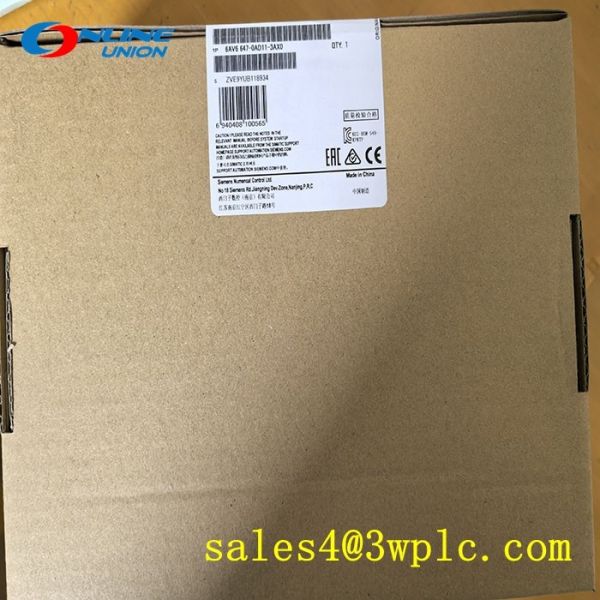

6AV6647-0AD11-3AX0 SIEMENS SIMATIC HMI KTP600 Basic Color PN Images
|
