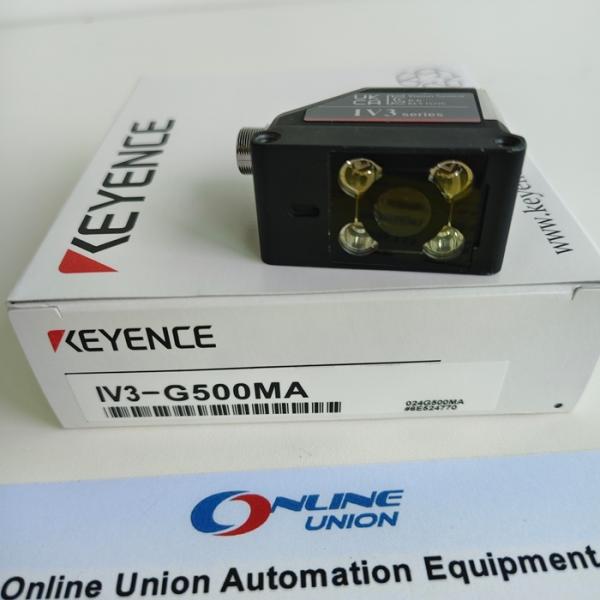

IV3-G500MA KEYENCE Compact Model Sensor Head Standard Model Monochrome AF Type

Brand Name : KEYENCE

Model Number : IV3-G500MA

Place of Origin : Japan

MOQ : 1

Price : 1-99$

Payment Terms : T/T

Supply Ability : 999

Delivery Time : in stock / 1-3 work days

Packaging Details : Brand New Original

Contact Now

KEYENCE IV3-G500MA Compact Model Sensor Head Standard Model Monochrome AF Type:



The IV3-G500MA is a standard-type, monochrome, auto-focus sensor head from KEYENCE's IV3 Series, which is equipped with AI image recognition technology.


Technical Specifications :

  1. Image Reception Element: It uses a 1/2.9-inch monochrome CMOS sensor.
  2. Pixel Count: The resolution is 1280 (H) × 960 (V) pixels.
  3. Focus Adjustment: The sensor features automatic focus adjustment during setup.
  4. Exposure Time: It offers an exposure time range from 12 µs to 9 ms.
  5. Integrated Illumination: The unit includes infrared LED lighting that operates in a pulse-light mode.
  6. Working Distance and Field of View: The operating distance starts from 50 mm. At 50 mm, the field of view is approximately 22 mm (H) × 16 mm (V), and it can reach up to 1184 mm (H) × 888 mm (V) at a distance of 3000 mm.
  7. Environmental Durability: The sensor head is built to be robust with an IP67 protection rating, making it dust-tight and resistant to temporary immersion in water. It operates in temperatures from 0 to +50°C and can withstand significant vibration and shock.
  8. Physical Properties: The main housing is made of zinc die-cast. Without the optional AI shooting illumination unit, it weighs approximately 75 grams.




IV3-G500MA KEYENCE Compact Model Sensor Head Standard Model Monochrome AF Type
