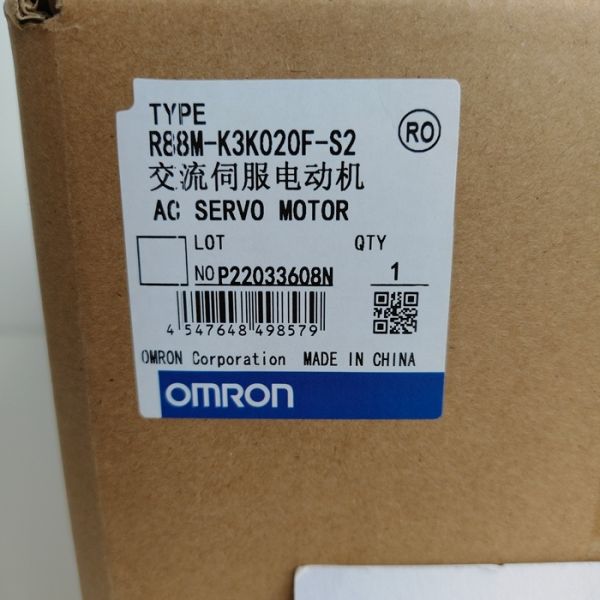

Omron R88M-K3K020F-S2 G5 Series AC Servo Motor
G5 series AC servo motor, 3 kW, 400 VAC, 2000 rpm, 14.3 Nm, Incremental encoder.
The OMRON R88M-K3K020F-S2 is a high-performance AC servo motor from the G5 series, designed for precision motion control applications. It operates at 2000 RPM and is rated for 400V AC power supply, making it suitable for industrial automation systems requiring high torque and dynamic response. The motor features an incremental encoder for accurate position feedback and is compliant with international safety and environmental standards (e.g., CE, CSA, cULus, TUV, UL).
Technical Specifications:
Rated Power:
3 kW (4.02 horsepower), providing robust power for medium-to-heavy-duty applications.
Voltage Rating:
400V AC, compatible with three-phase industrial power systems.
Speed:
2000 RPM (nominal), ensuring smooth operation at high speeds.
Encoder Type:
Incremental encoder (20-bit high-resolution), enabling precise position and speed control.
Physical Characteristics:
Weight: 24 lb (10.9 kg), indicating a sturdy build for industrial use.
Mounting: Designed for easy integration into machinery with standard mounting holes (spacing: 5.709 inches / 145 mm).
Connector Type: Terminal style connector for reliable electrical connections.
Environmental Resistance:
IP65 rated, protecting against dust and low-pressure water jets, making it suitable for harsh industrial environments.
Operating Temperature:
0°C to 40°C, ensuring stable performance in typical factory settings.
Certifications:
Complies with CE, CSA, cULus, TUV, and UL standards, meeting global safety and regulatory requirements.
